Mechanical Ventilation with heat recovery (MVHR). |
|
Ventrite are pleased to announce the introduction of the TITON HRV Q Plus Range. |
|
|
|
Eco-Vent 1 (Titon HRV 1 Q Plus) |
Specific Benefits and Features
The revolutionary compact HRV1 Q Plus is primarily for use in
dwellings with three wet rooms or less.
Compact-Unit is suitable for small houses or apartments the HRV1 Q Plus is so
small it can fit into a hall cupboard or airing cupboard if a roof space is not
an option.
Reclaims up to 98% of expelled warm air flowing through the heat exchanger core
(and up to 91% heat recovery after ducting to living areas and rooms)
Very compact (fits in a cupboard!)
Durable & safe
Discreet & quiet
Proven performance
Very low power consumption
Friendly, reliable & knowledgable service
Environmentally friendly
Easy installation
|
 |
|
Eco-Vent 1 (Titon HRV1 Q Plus) Brochure PDF Please
Click Here |
|
Additional information sheet
Click Here |
|
Product Page Click Here. |
|
To find out how our system works please click here. |
|
|
|
Eco-Vent 1.25 (Titon HRV 1.25 Q Plus) |
For use in small
dwellings
Specific Benefits and Features
The combination of ultra low power consumption and a highly efficient heat exchanger is specifically designed to enhance SAP performance via Appendix Q, yet the unit remains small enough to be easily incorporated into apartments and smaller houses where space is at a premium. The HRV1.25 Q Plus has many features, including removable airtight filter covers for ease of use, as well as Summer Bypass and Humidity Sensor verions.
Reclaims up to 98% of expelled warm air flowing through the heat exchanger core
(and up to 90% heat recovery after ducting to living areas and rooms)
Very compact (fits in a cupboard!)
Durable & safe
Discreet & quiet
Proven performance
Very low power consumption
Friendly, reliable & knowledgable service
Environmentally friendly
Easy installation
|
 |
|
Eco-Vent 1.25 (Titon HRV1.25 Q Plus) Brochure PDF Please
Click Here |
|
|
|
Product Page Click Here. |
|
To find out how our system works please click here. |
|
|
|
Eco-Vent 1.75 (Titon HRV 1.75 Q Plus) |
For use in small to
medium sized dwellings
Specific Benefits and Features
The combination of ultra low power consumption and a highly efficient heat exchanger is specifically designed to enhance SAP performance via Appendix Q, yet the unit remains small enough to be easily incorporated into apartments and smaller houses where space is at a premium. The HRV1.75 Q Plus has many features, including removable airtight filter covers for ease of use, as well as Summer Bypass and Humidity Sensor verions.
Reclaims up to 98% of expelled warm air flowing through the heat exchanger core
(and up to 91% heat recovery after ducting to living areas and rooms)
Compact (fits in a cupboard!)
Durable & safe
Discreet & quiet
Proven performance
Very low power consumption
Friendly, reliable & knowledgable service
Environmentally friendly
Easy installation
|
 |
|
Eco-Vent 1.75 (Titon HRV1.75 Q Plus) Brochure PDF Please
Click Here |
|
|
|
Product Page Click Here. |
|
To find out how our system works please click here. |
|
|
|
|
|

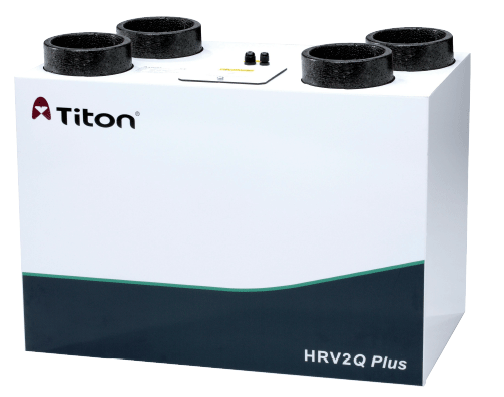

Eco-Vent 2 (Titon HRV 2 Q Plus) |
For use in small to
medium sized dwellings
Specific Benefits and Features
The revolutionary compact HRV2 Q Plus.
Compact-Unit is suitable for medium houses the HRV2 Q Plus is
larger in size than the HRV1 Q Plus but can still fit into a hall cupboard or
airing cupboard if a roof space is not an option.
Reclaims up to 98% of expelled warm air flowing through the heat exchanger core
(and up to 90% heat recovery after ducting to living areas and rooms)
Compact (fits in a cupboard!)
Durable & safe
Discreet & quiet
Proven performance
Very low power consumption
Friendly, reliable & knowledgable service
Environmentally friendly
Easy installation
|
 |
|
Eco-Vent 2 (Titon HRV2 Q Plus) Brochure PDF Please
Click Here |
|
Product Page Click Here. |
|
To find out how our system works please click here. |
|
|
|
|
|
Eco-Vent
10 (Titon HRV 10 Q Plus) |
For use in medium
to large sized dwellings
Specific Benefits and Features
The revolutionary compact HRV10 Q Plus.
Compact-Unit is suitable for medium to large houses the HRV10 Q
Reclaims up to 98% of expelled warm air flowing through the heat exchanger core
(and up to 92% heat recovery after ducting to living areas and rooms)
Very compact (fits in a cupboard!)
Durable & safe
Discreet & quiet
Proven performance
Very low power consumption
Friendly, reliable & knowledgable service
Environmentally friendly
Easy installation
|
 |
|
Eco-Vent 2 (Titon HRV10 Q Plus) Brochure PDF Please
Click Here |
|
Product Page Click Here. |
|
To find out how our system works please click here. |
|
|
|
|
|

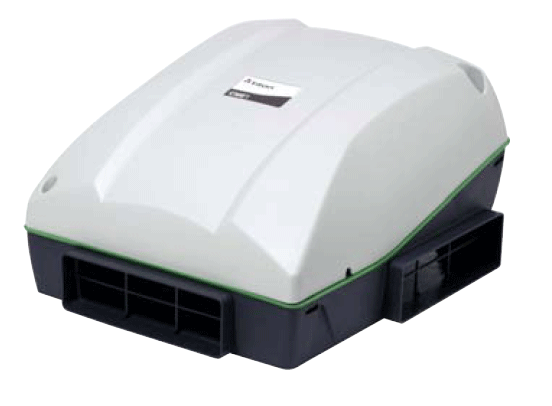

CME1 |
Ideal for batches or rentals |
|
Efficient Central Mechanical Extract Unit |
Specific Benefits and Features
Energy Efficient.
Compact-Unit is small and low in profile, can be fitted in an airing cupboards,
cupboards or roof spaces.
Easy installation due to innovative sub assembly and unique packaging design.
Duct ports on one level, lessening need for un-necessary bends in ducting,
saving cost, reducing joints and installation time.
Ideal for central mechanical ventilation in refurbishment of single floor
dwellings where there is only space for rectangular ducting.
Low unit noise
Can accept either 204mmx60mm or 110mmx54mm ducting.
Unit can be cleaned and serviced without disturbing ducting.
Unique enclosure with 204mmx60mm spigots on one level, ideal for low profile
ceiling mounting.
Very low power consumption
Friendly, reliable & knowledgable service.
For use with passive ventilation including the Titon trickle vent range. |
 |
|
|
|
Titon CME1 Brochure PDF Please
Click Here |
|
|
|
To find out how our system works please click here. |
|
|
|
SONAIR |
For use fitted through walls |
|
Acoustic (sound attenuating) filtered air supply units |
Sonair is for use in buildings where noise or air pollution is a
major problem.
The units are mechanical input ventilators that can also provide background
ventilation as an alternative to trickle vents.
Specific Benefits and Features
Sonair is a wall mounted input fan featuring touch control with an LCD display.
Sonair can be individually operated or used as a part of the unique Air Comfort
- Independently tested by the BRE
- Exceptional sound attenuation (up to 56dB*)
- Air cleaning
- Low energy
- Coordinated air input and extraction
- Fully programmable central control panel
- Optional air quality sensors
- No "hard" wiring requirement for remote operation
|
 |
|
|
|
Titon Sonair Brochure PDF Please
Click Here |
|
|
|
Airliner |
For use fitted through walls |
|
Acoustic (sound attenuating) Telescopic Air Brick |
AirLiner is a rectangular acoustic (sound attenuating) air brick
suitable for new build situations providing up to 12800mm EA. AirLiner is
available with a range of cowls and louvres or an internal hit & miss style
ventilator and is available in white, buff/sand or terracotta moulded
plastic finish.
Specific Benefits and Features
- Acoustic (sound attenuating) telescopic cavity liner
- Cowl and Louvre (fixed) or Hit and Miss (adjustable) ventilator available in sets
- Baffle reduces sound, light and draughts
- Contains 3 unique acoustic panels
- Complies with Building Regulations Approved Document J and BS 5440 Part 2: 2000
UK (excluding Hit & Miss version)
- Telescopic sleeve extends to suit opening. '9 x 6' Liner extends from 250 to 404mm (air brick fitted), '9 x 3' Liner extends from 250 to 368mm (air brick fitted)
- No special fixing required, Air Brick inserted into opening
|
 |
|
|
|
Titon
Airliner Brochure PDF Please
Click Here |
|
|
|
|
|
|
|
The Titon Trickle vent range. |
Full Trimvent Online Brochure PDF
Please Click
Here.
Note:- Some items are not currently NZ stocked and may require ordering. Please
contact us for pricing and availability.
|
|
|
Trimvent® Select S13. (The most popular of the Trimvent range)
Specific Benefits
Unique occupant controllable tilting T-Bar..
Deflects air up,down or both
Rounded integral shape
For use over 13mm slot
Screw fix with matching moulded covers
2000mm2 or 4000mm2 versions.
Patented and registered design
Sleeve for hollow profiles available
Further information on this product please download Titon
PDF Click Here |
 |
|
Trimvent® Select R13.
Specific Benefits
Unique occupant controllable tilting T-Bar..
Deflects air up,down or both
Minimal projection when closed
For use over 13mm slot
Screw fix with matching moulded covers
4000mm2 version.
Patented and registered design
Sleeve for hollow profiles available
FFurther information on this product please download Titon
PDF Click Here |
 |
|

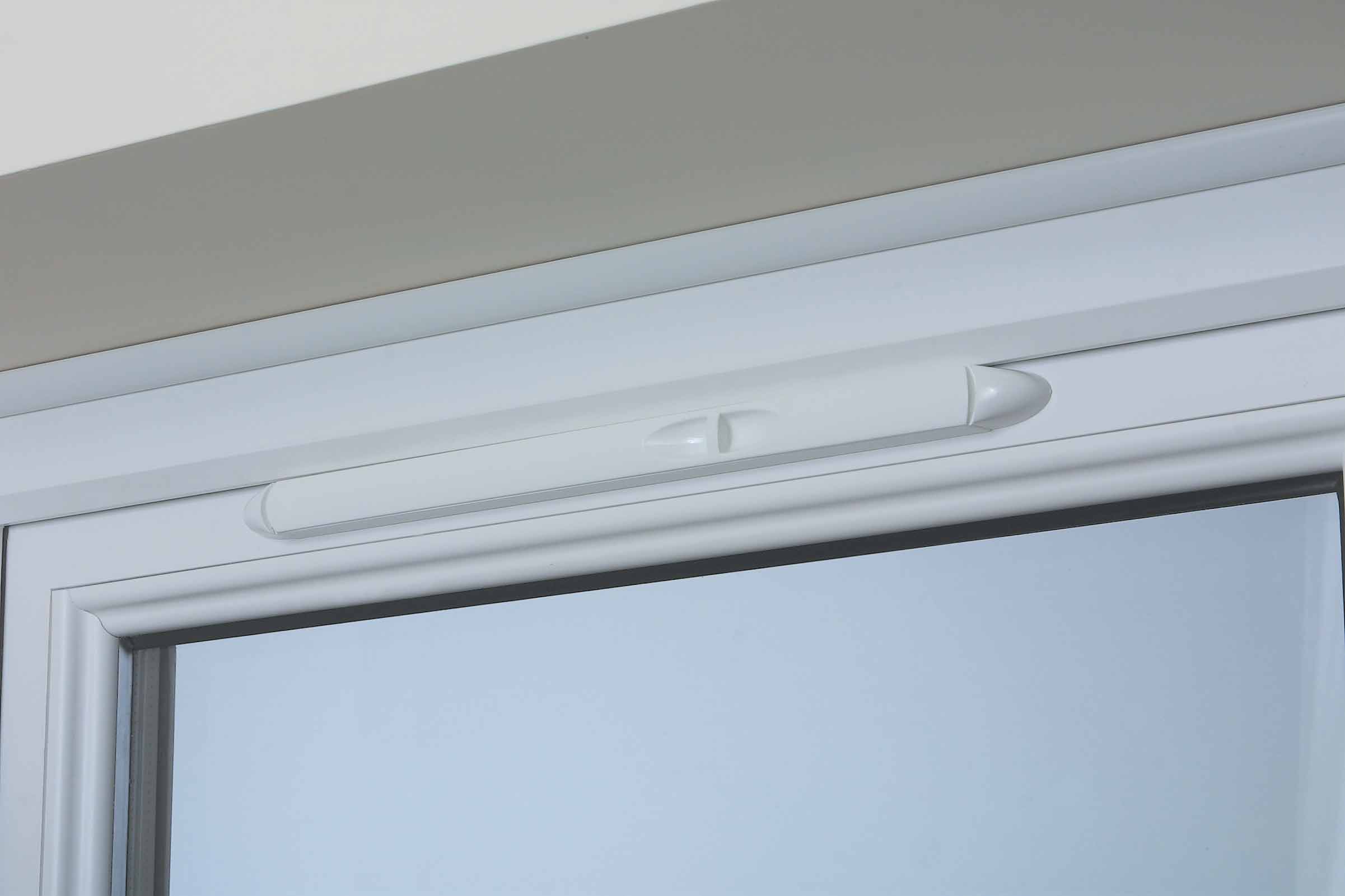

Trimvent® Select S16.
Specific Benefits
Unique occupant controllable tilting T-Bar.
Deflects air up,down or both
Minimal projection when closed
For use over 16mm slot
Screw fix with matching moulded covers
4000mm2 version.
Patented and registered design
Sleeve for hollow profiles available
Further information on this product please download Titon
PDF Click Here |
 |
|
|
Please see out video on how our system works. |
|
Error- You must upgrade your Adobe Flash Player to see this video, upgrade here.
|
SF Sound Attenuator Ventilator
Specific Benefits
The SF Sound Attenuator ventilator is a slot ventilator which provides high levels of sound attenuation compared to similar ‘acoustic’ products, in a compact size. The SF Sound Attenuator can be purchased in a number of combinations based on different sizes of inner (ventilator) and outer (canopy). Combinations can be chosen depending on sound attenuation requirement and aesthetic acceptance. The product is a cost effective method of reducing incoming noise where conventional slot ventilators are unable to assist in acoustic issues. The SF Sound Attenuator comes fitted with an Titon SF Ventilator and/or SF Canopy and fits over the standard SF, Trimvent Select or Select Xtra slot size.
Features & Benefits
- Cost effective sound attenuating ventilator
- Independently tested by Sound Research Laboratories in accordance with BSEN20140-10:1992, ISO140-10:1991
(UK)
- Vent sizes available: V25, V50, V75 and canopy sizes: C25 and C50
- Can provide up to 41 D,n,e,w attenuation, depending on combination
- Suitable for use in domestic or non-domestic installations
- Ideal for retrofit applications, over an existing slot
- Available in a range of combinations to suit different acoustic specifications
- Fits over a standard SF, Trimvent Select or Trimvent Select Xtra slot size
- Supplied with SF Ventilator and/or SF Canopy fitted
- Compression closing action
- High performance gasket on ventilator improves sealing in adverse conditions
- For use over a 13mm slot
- Screw covers
Further information on this product please
download Titon
PDF Click Here |
  |
|
The Ventrite Handle and Hardware Range.
|
|
All Select handles feature the following:
Push button to open
Self latching closure
Excellent ergonomics
Easy operation for reduced wear and tear
Clearly indicated 90º lock movement
Positive latching action
Screw covers
High quality finish from new die casting methods
Select handles are part of the Select Suite of products,
the first matching window handle and trickle ventilator range.
NOTE: Plated finishes are not suitable for use in coastal or highly
corrosive environments.
|
Select Cockspur & Select Casement Stay.
Specific Benefits
Specifically designed for timber windows
Minimal projection for ease of window stacking
Smooth handle lead in action and streamline design
Unique lead-in on handle nose
Section related non-handed narrow wedge
Handle incorporates sash lift
Stay non-handed
Locking or non locking versions
integral stay clip
Stay available in short for narrow sashes
Handle and stay uses identical lock and key.
Available in various colours including gold and silver.
Further information on this product please
download Titon
PDF Click Here |
 |
Alliance Cam Catch.
Specific Benefits
Locking security to traditional sliding windows
(Double Hungs).
Spring loaded to ensure sash clearance
Capable of achieving BS7950 (Dependant on window design)
Interlocking design for increased security.
Further information on this product please
download Titon
PDF Click Here |
 |
|
|
|
|
|
|
